Choosing the right thickness for Intalox saddle packing involves a systematic evaluation of operational conditions and material requirements to ensure long-term efficiency and reliability in industrial processes.
Command 1: Assess Operating Pressure Conditions
Start by analyzing the column’s operating pressure. For high-pressure systems (exceeding 10 bar), opt for thicker packings (typically 1.5mm–3mm depending on material) to withstand structural stress. Thicker walls prevent deformation under pressure fluctuations, maintaining packing integrity and consistent mass transfer. For low-pressure applications (below 5 bar), thinner options (0.8mm–1.2mm) suffice, reducing material costs without compromising performance.
Command 2: Evaluate Fluid Corrosiveness
Identify the chemical nature of fluids. In corrosive environments (e.g., acidic or alkaline solutions), select thicker packings made from corrosion-resistant materials (ceramic, PTFE, or alloy metals). The increased thickness (2mm–4mm) provides a larger protective layer against chemical erosion, extending service life. For non-corrosive fluids (e.g., water-based solutions), standard thickness (1mm–1.5mm) in materials like polypropylene or carbon steel is adequate.
Command 3: Match Thickness to Flow Rates
Consider gas and liquid flow rates. High flow rate systems (gas velocity > 2 m/s or liquid load > 50 m³/(m²·h)) require thicker packings (1.2mm–2.5mm) to resist turbulent impact. This prevents packing displacement and channeling, ensuring uniform phase contact. For low flow rates, thinner packings (0.8mm–1.2mm) minimize pressure drop while maintaining efficiency.
Command 4: Account for Temperature Extremes
In high-temperature operations (above 150°C), choose thicker packings with heat-resistant materials (metal or ceramic). Thickness (2mm–3.5mm) enhances thermal stability, reducing cracking from expansion/contraction. For ambient temperatures (20°C–80°C), standard thickness (1mm–2mm) in plastics or metals works effectively, balancing durability and cost.
Command 5: Balance Cost and Longevity
Calculate lifecycle costs. Thicker packings have higher initial costs but lower replacement frequency in harsh conditions. For short-term or low-intensity processes, thinner, cost-effective options (0.8mm–1.2mm) are preferable. For continuous, high-demand operations, invest in thicker packings (2mm–4mm) to minimize downtime and maintenance expenses.
Command 6: Refer to Manufacturer Specifications

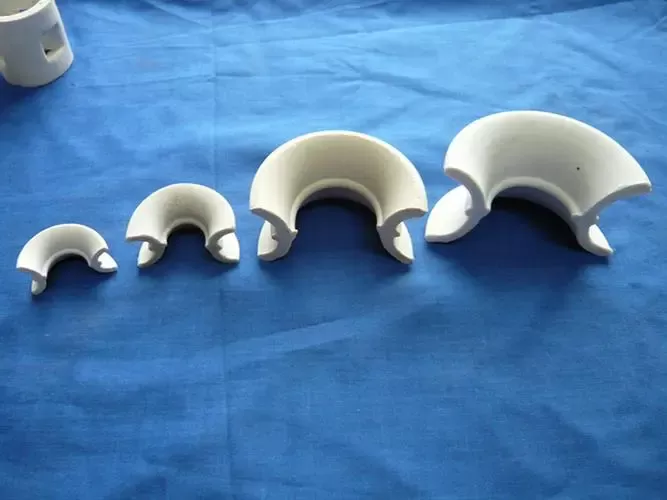

Consult manufacturer data sheets to match thickness with nominal diameter. Larger packings (50mm–76mm) often require thicker walls (2mm–3mm) for structural support, while smaller sizes (16mm–25mm) use thinner profiles (0.8mm–1.5mm) to maximize surface area for mass transfer.
By following these commands, industries can select Intalox saddle packing thickness that aligns with operational needs, ensuring efficient, durable, and cost-effective column performance.
