In the metallurgical industry, metal ore grinding is a foundational process that directly impacts mineral processing efficiency, metal recovery rates, and overall production costs. As the primary medium for breaking down hard, abrasive ore materials into fine particles, grinding balls play an indispensable role in this stage. Without reliable, high-performance grinding balls, the metallurgical sector would struggle to achieve the required particle size reduction, leading to lower smelting yields, increased energy consumption, and higher operational downtime. This article explores how modern grinding balls address the specific needs of metallurgical metal ore grinding, from material science advancements to operational optimization.
.jpg)
Key Performance Requirements of Grinding Balls for Metallurgical Applications
Metallurgical metal ore grinding demands grinding balls that can withstand extreme conditions, including high impact forces, abrasive wear from hard mineral components, and the corrosive nature of some ore slurries. Critical performance metrics include:
- Hardness: A minimum hardness rating (often measured via Rockwell C scale, HRC) ensures the balls resist deformation and wear when crushing tough ores like iron, copper, or gold.
- Impact Toughness: The ability to absorb shock without fracturing, especially important in high-speed ball mills where balls collide frequently.
- Density: Higher density balls increase the "work index"—the energy required to reduce ore size—improving grinding efficiency by maximizing collision energy transfer.
- Chemical Stability: Resistance to corrosion from acidic or alkaline ore environments prevents material degradation, ensuring consistent performance over extended periods.
Material Selection: Balancing Hardness and Durability
The material composition of grinding balls is central to meeting these requirements, with three primary types dominating metallurgical applications:
- High-Chromium Cast Iron Grinding Balls: Containing 10-30% chromium, these balls form a matrix of hard chromium carbides (Cr7C3) embedded in a martensitic steel matrix. This combination delivers exceptional hardness (HRC 58-65) and wear resistance, making them ideal for hard, abrasive ores like magnetite and hematite.
- Steel Grinding Balls/Forgings: For ores with moderate hardness, steel balls (e.g., carbon steel, low-alloy steel) offer better impact toughness (higher elongation at fracture) than cast iron, reducing breakage in ball mills with irregular ore compositions.

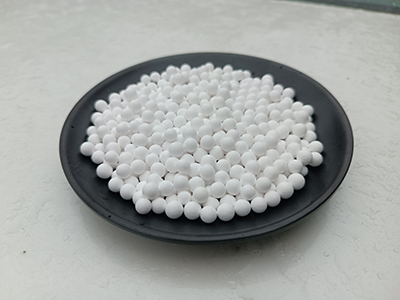

- Ceramic Grinding Balls: Alumina (Al2O3) or zirconia (ZrO2) ceramics provide unmatched chemical inertness and high hardness (up to HRA 92 for zirconia), making them suitable for non-ferrous ores like copper and lead, where corrosion resistance is critical.
Enhancing Grinding Efficiency: Beyond Material Properties
While material quality is fundamental, optimizing grinding ball performance also involves considering operational factors:
- Size Distribution: A balanced range of ball sizes (e.g., 5-50mm) ensures efficient "cascading" in ball mills, where larger balls crush coarse ore and smaller balls refine fine particles, minimizing energy waste from oversized or undersized balls.
- Ball Mill Parameters: Operating variables like mill speed, filling ratio (30-40% of mill volume), and ore pulp density directly affect ball impact. For example, a mill speed of 65-75% of critical speed ensures balls lift and drop optimally, maximizing grinding action.
- Surface Modification: Advanced surface treatments, such as carburizing or coating with hard materials (e.g., tungsten carbide), can extend ball life by reducing wear at contact points, further lowering the total cost of ownership.
FAQ:
Q1: What role does grinding ball hardness play in metal ore grinding efficiency?
A1: Higher hardness (e.g., HRC 60+ for high-chromium balls) reduces wear rate, allowing balls to maintain their size and impact energy longer, directly improving particle size reduction and metal recovery.
Q2: How do different ore types influence the choice of grinding balls?
A2: Hard, abrasive ores (e.g., iron, copper sulfides) require high-chromium cast iron or tungsten carbide balls; soft, cohesive ores (e.g., coal) benefit from steel balls with higher toughness to avoid excessive breakage.
Q3: What maintenance practices help extend grinding ball service life in metallurgical mills?
A3: Regular ball inventory checks to replace worn balls, adjusting mill speed/filling ratio to prevent excessive ball-to-ball collisions, and using anti-abrasive liners to protect both balls and mill shells.
