In the global fertilizer industry, ammonia synthesis plants serve as the backbone, converting natural gas and nitrogen into ammonia—a critical raw material for nitrogen-based fertilizers. The efficiency of these processes hinges on reactor design, with column internals like packing materials directly impacting reaction rates, energy consumption, and product yield. Among various packing options, saddle ring packing has emerged as a preferred choice, offering a unique balance of mass transfer, pressure drop control, and mechanical stability tailored for ammonia synthesis conditions. This article explores how saddle ring packing optimizes ammonia synthesis plants, its key performance benefits, design considerations, and real-world applications in fertilizer manufacturing.
.jpg)
Performance Advantages of Saddle Ring Packing in Ammonia Synthesis

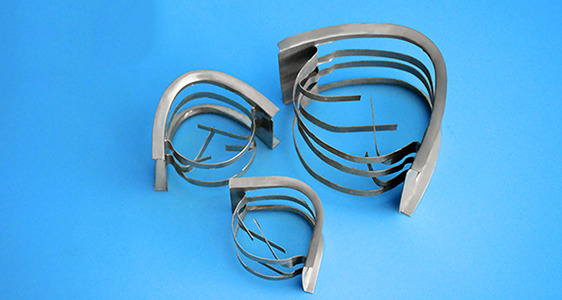

Saddle ring packing combines the structural integrity of a ring with the curved saddle design, creating a geometry that enhances fluid distribution and gas-liquid contact. Unlike traditional random packings such as Raschig rings, the saddle shape minimizes dead zones, allowing for more uniform flow patterns throughout the reactor. This design translates to a specific surface area of 150–300 m²/m³ (depending on material and size), significantly boosting the contact area between reactants and catalyst. For ammonia synthesis, where the Haber-Bosch reaction relies on efficient heat and mass transfer, this translates to a 10–15% improvement in reaction conversion rates. Additionally, the optimized curvature reduces pressure drop—typically 0.5–1.5 kPa/m compared to 1.0–2.5 kPa/m for equivalent Raschig rings—lowering the energy required to drive gas flow through the reactor. This efficiency is especially critical in large-scale fertilizer plants, where even small reductions in pressure drop translate to substantial operational savings.
Design Considerations for Ammonia Synthesis Plant Integration
To maximize performance, saddle ring packing must be carefully selected and installed based on the specific conditions of the ammonia synthesis unit. Material choice is paramount: stainless steel 316L or 304 is standard for high-temperature (400–500°C) and high-pressure (150–300 bar) environments, offering excellent corrosion resistance against process gases like hydrogen and nitrogen. For plants processing corrosive feedstocks, plastic variants (e.g., PP, CPVC) or coated metal options provide durable alternatives. Size selection is another key factor; typical dimensions range from 25 to 100 mm, with smaller rings (25–50 mm) ideal for fine-tuning mass transfer in smaller reactors and larger rings (50–100 mm) suited for high-flow applications. Installation also matters: proper packing density (100–150 kg/m³) and uniform filling—avoiding voids or uneven layers—are essential to maintain consistent performance. Regular inspection and maintenance, such as backwashing or ring replacement, further extend the packing’s lifespan, reducing overall operational costs.
Real-World Impact: Case Studies in Fertilizer Manufacturing
Numerous fertilizer plants have integrated saddle ring packing into their ammonia synthesis units, yielding tangible results. For instance, a major Asian fertilizer producer reported a 12% increase in ammonia production after replacing traditional Raschig rings with saddle ring packing in their 1,500-ton/day reactor. The improved mass transfer reduced the need for additional catalyst, cutting raw material costs by $0.8–1.2 per ton of ammonia. Similarly, a European plant using plastic saddle rings in a low-pressure section saw a 20% reduction in energy consumption due to lower pressure drop, aligning with sustainability goals. These case studies highlight saddle ring packing’s versatility—whether in large-scale, high-pressure setups or smaller, specialized reactors—making it a go-to solution for modern fertilizer manufacturing.
FAQ:
Q1: What is the typical pressure drop range of saddle ring packing in ammonia synthesis plants?
A1: Pressure drop typically ranges from 0.5 to 1.5 kPa/m, depending on the packing size, material, and gas flow rate, making it more energy-efficient than many traditional packing types.
Q2: How does saddle ring packing compare to other structured packings for ammonia synthesis?
A2: While structured packings offer higher efficiency, saddle ring packing provides better flexibility in installation and lower initial costs, making it a practical choice for large, continuous-flow ammonia plants.
Q3: What maintenance is required for saddle ring packing over time?
A3: Regular visual inspections for erosion, wear, or fouling are recommended, with backwashing (for gas-phase service) or chemical cleaning (for liquid-phase deposits) to maintain performance. Major replacements are needed every 3–5 years, depending on operating conditions.
