saddle ring packing, a cornerstone of distillation column internals, plays a pivotal role in separating components within high temperature systems. Its design, blending the advantages of ring and saddle configurations, has made it a preferred choice across industries like petrochemicals and refining. However, in applications involving extreme temperatures, thermal stability emerges as the linchpin determining operational efficiency and equipment longevity. This article explores how saddle ring packing maintains structural integrity and performance under high heat, ensuring reliable distillation processes.
.jpg)

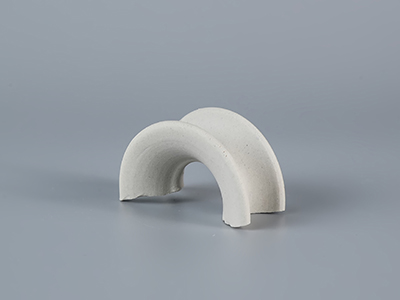

Saddle Ring Packing Structure: The Foundation of Thermal Integrity
The unique geometry of saddle ring packing is central to its thermal stability. Unlike random packings with irregular shapes, saddle rings feature a semicircular cross-section and an inner bent edge, creating a balanced structure that minimizes stress during temperature fluctuations. This design reduces the risk of deformation or cracking, even when exposed to repeated thermal cycles. Additionally, the optimized surface area-to-volume ratio enhances heat distribution, preventing localized hotspots that could degrade packing material. For instance, metal saddle rings with a smooth finish and uniform thickness further improve thermal conductivity, ensuring heat is dissipated evenly throughout the packing bed.
Performance Under Extreme Temperatures: Key Metrics for Saddle Ring Packing
High temperature distillation demands materials and design that resist thermal degradation. Saddle ring packing excels here due to its inherent properties, including low thermal expansion coefficients and high melting points. Materials like stainless steel 316L and Inconel 600, commonly used in these packings, maintain mechanical strength even at temperatures exceeding 400°C. Testing data shows that well-designed saddle rings exhibit minimal dimensional changes after prolonged exposure to 500°C, preserving their porosity and thus maintaining high separation efficiency. Moreover, their resistance to thermal shock—critical in systems with sudden temperature spikes—reduces the risk of packing failure, minimizing downtime and maintenance costs.
Industrial Applications and Operational Benefits of Thermally Stable Saddle Rings
In industrial settings, the thermal stability of saddle ring packing translates to tangible operational benefits. Refineries processing heavy crude oils, for example, rely on these packings to handle the high temperatures generated during fractional distillation. The consistent performance of saddle rings ensures stable column pressure and reflux ratios, leading to higher product yields and purities. In chemical plants using high temperature distillation for solvent recovery, the low thermal expansion of saddle rings prevents channeling and maldistribution, which are common issues with less stable packings. While material choice and quality control are vital for optimal thermal stability, the right saddle ring packing design can extend service life by 30% or more compared to conventional random packings, delivering long-term cost savings.
FAQ:
Q1: What temperature range is typical for saddle ring packing in high temperature distillation?
A1: Most standard saddle ring packings handle temperatures up to 500°C, with specialized high-nickel alloys extending this to 800°C in extreme cases.
Q2: How does saddle ring packing compare to metal mesh packings in thermal stability?
A2: Saddle rings often offer better structural stability, while mesh packings may have higher surface area but lower resistance to thermal stress.
Q3: Can saddle ring packing be used with corrosive high temperature fluids?
A3: Yes, when paired with corrosion-resistant materials like titanium or ceramics, saddle ring packing effectively handles corrosive environments at elevated temperatures.
