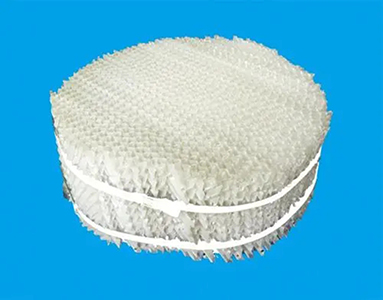

structured packing is a critical tower internal in chemical and petrochemical processes, enhancing mass and heat transfer efficiency. Adhering to established standards ensures consistent performance, reliability, and compatibility with various separation systems.
.jpg)
Key standards for structured packing focus on material specifications, geometric parameters, and performance metrics. Materials like metal alloys (e.g., stainless steel), plastics (e.g., PP, PVDF), and ceramics must meet corrosion resistance and mechanical strength requirements. For example, metal packings need high-temperature tolerance, while plastic options prioritize chemical stability.
Geometric parameters, including specific surface area (100-1000 m²/m³), porosity (0.8-0.98), and wave angle (30-60 degrees), directly impact efficiency. Higher surface area increases phase contact, but excessive values may raise pressure drop. Standards define optimal ranges to balance efficiency and operational costs.
.jpg)
Performance testing evaluates pressure drop (ΔP), separation efficiency (e.g., HETP), and capacity factor. Tests via pilot-scale or CFD simulations ensure packings meet design specs for distillation, absorption, and extraction. Industry-specific standards, like CPI or ASME, tailor requirements—petrochemicals need thermal stability, while environmental systems demand corrosion resistance.
In conclusion, structured packing standards are foundational for selecting and using tower internals effectively. Aligning with these guidelines optimizes process efficiency, reduces risks, and ensures long-term equipment reliability.
