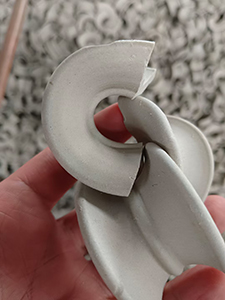

Intalox saddle ring packing, a type of high-efficiency tower internal, has become a staple in industrial separation processes. Its working principle hinges on optimizing mass transfer and fluid dynamics through a distinct, engineered design. Unlike traditional random packings such as raschig rings, Intalox saddle rings feature a double-curved, symmetric saddle shape with precision-cut windows and notches. This structural innovation eliminates dead spaces, ensuring uniform fluid distribution across the packing bed.
When gas (e.g., vapor) and liquid streams flow through the packing, the double arc surfaces of the saddle rings excel at wetting the packing material. The notches and windows disrupt linear flow patterns, minimizing wall flow effects and maximizing the contact between gas and liquid phases. This direct enhancement of phase contact directly increases the specific surface area—critical for mass transfer—allowing more efficient exchange of molecules.
Additionally, the symmetric geometry of Intalox saddle rings minimizes pressure drop, enabling higher fluid throughput in distillation, absorption, and extraction columns. By reducing the energy required to drive flow, they lower operational costs while maintaining high separation efficiency. Their robust design and resistance to fouling further extend their lifespan in harsh industrial environments.
In essence, the working principle of Intalox saddle ring packing lies in harmonizing fluid distribution, mass transfer surface area, and pressure drop, making it an optimal choice for enhancing the performance of tower internals in chemical, petrochemical, and environmental engineering applications.
