Pall rings packing parameter specification of different materials

The Pall rings are made of materials such as plastic, ceramic and metal. Different materials have different parameters. The following is the parameter table sorted out by Helvo Chemical for your reference. If you need a quotation, please contact us....

Product Inquiry

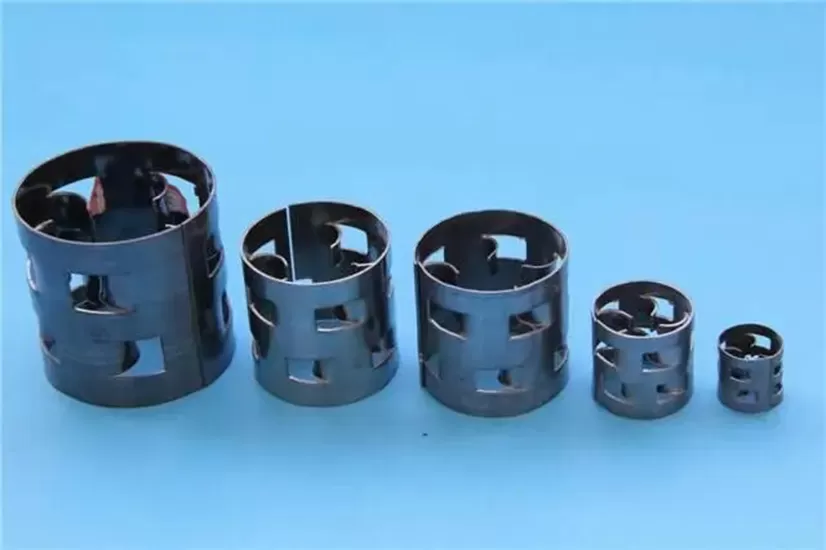

金属不锈钢鲍尔环 metal pall ring (18).jpg

The following is an integrated total table of parameters for Pall ring packings of different materials:

Material	Specification (mm)	Model	Actual Size Diameter×Height×Thickness (mm)	Specific Surface Area (m²/m³)	Void Fraction	Void Fraction (%)	Number of Packings (n/m³)	Bulk Density (kg/m³)	Dry Packing Factor (m⁻¹)
Plastic Pall Ring	Φ25	-	25×25×1.0	175	0.9	-	53500	55	239
Plastic Pall Ring	Φ38	-	38×38×1.0	115	0.89	-	15800	46	220
Plastic Pall Ring	Φ50	-	50×50×1.2	112	0.9	-	6500	38	154
Plastic Pall Ring	Φ76	-	76×76×1.5	73	0.92	-	1830	36	94

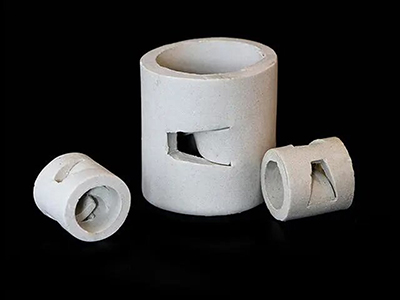

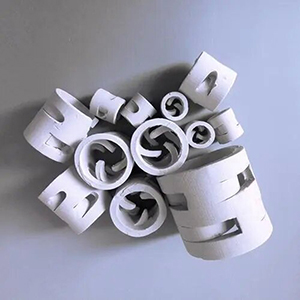

Ceramic Pall Ring	Φ25	-	25×25×3	238	0.73	-	35000	700	565
Ceramic Pall Ring	Φ38	-	38×38×4	197	0.75	-	10200	680	365
Ceramic Pall Ring	Φ50	-	50×50×5	154	0.78	-	5800	600	252
Ceramic Pall Ring	Φ76	-	76×76×8	116	0.8	-	1650	550	146
Metal Pall Ring	-	Dg16	16×16×0.5	311	-	93	171000	539	455
Metal Pall Ring	-	Dg25	25×25×0.6	233	-	93.7	55900	489	232
Metal Pall Ring	-	Dg38	38×18×0.8	129	-	94.5	13700	432	153
Metal Pall Ring	-	Dg50	50×50×1.0	112.3	-	94.9	6500	395	131
Metal Pall Ring	-	Dg76	76×76×1.5	70	-	95.2	1756	374	81
