Raschig rings are a traditional type of ring-shaped packing material with significant symbolic importance in chemical mass transfer equipment. They have specific application values in many chemical production processes.

I. Structural Features

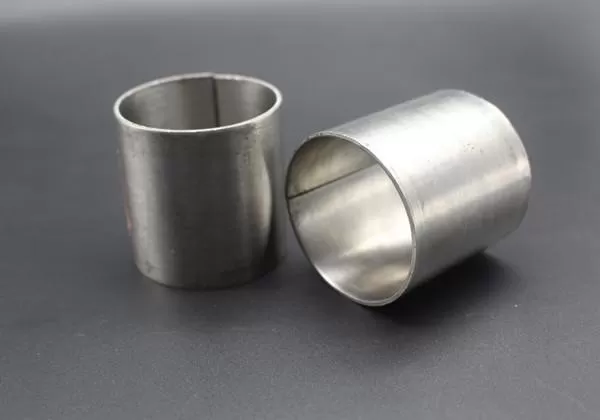

Raschig rings were first invented by Raschig. Their structural design is simple and intuitive. They are in the shape of a circular ring with an outer diameter equal to its height and have no openings on the sides. This simple structural design not only makes their manufacturing process relatively easy to implement but also has enabled them to occupy an important foundational position in the early field of chemical packing materials. **

II. Performance Characteristics

Gas-Liquid Distribution

In terms of gas-liquid distribution, the Raschig ring has certain limitations. When liquid flows, it tends to move along the outer wall of the ring, making it difficult to fully utilize the inner surface of the ring. As a result, the distribution of the gas and liquid phases during the contact process is not uniform enough.

Flux and Pressure Drop Characteristics

The flux of the Raschig ring is relatively small, and when gas passes through the packing layer composed of Raschig rings, it encounters greater resistance. This characteristic to some extent limits its application in large-scale chemical processes.

Mass Transfer Efficiency

Due to insufficient contact between the gas and liquid phases, the mass transfer efficiency of the Raschig ring is relatively low. In the process of material transfer and separation, it is difficult to achieve efficient material exchange. Therefore, in scenarios where high mass transfer efficiency is required, its performance is not satisfactory.

III. Main Functions

The core function of the Raschig ring packing is to provide a surface and channels for the contact of the gas and liquid phases, thereby achieving the mass transfer and separation processes. In chemical production operations such as absorption, distillation, and washing, it is filled in tower equipment and can effectively increase the contact area between the gas and liquid phases. When gas and liquid flow in opposite directions in the tower, the Raschig ring can disrupt the flow state of the fluid, promoting contact and mass transfer between the gas and liquid phases on its surface and in the surrounding space, providing the basic conditions for material separation and purification in chemical processes.

IV. Application Scenarios

Although the Raschig ring has some performance deficiencies, it still has certain application space in some specific scenarios due to its simple structure and low price. It is suitable for simple chemical processes with low requirements for mass transfer efficiency, small processing capacity, and weak corrosiveness of materials, such as small gas scrubbing towers and drying towers. In these scenarios, the Raschig ring can meet the basic production needs without incurring excessive cost burdens.

V. Manufacturing Cost

The manufacturing cost of the Raschig ring is relatively low, mainly due to its simple structural design and relatively easy manufacturing process. In applications where cost is a sensitive factor, this cost advantage makes the Raschig ring an attractive choice, allowing for a reduction in the investment cost of production equipment while ensuring basic functionality.
