The Application of Raschig Rings in Distillation Towers

The Application of Raschig Rings in Distillation Towers

As a traditional circular packing material, Raschig rings are not as widely used in distillation towers as new types of packing materials. However, they can still play a certain role in specific distillation scenarios. Their application characteristics are closely related to their own performance and the requirements of the distillation process.

I. Applicable Distillation Tower Types

The application of Raschig rings in distillation towers is mainly concentrated in small-scale and simple distillation processes. They are suitable for handling small volumes, low separation difficulty, and low requirements for mass transfer efficiency in distillation towers. For example, small laboratory distillation towers are used for the purification of small batches of samples or simple separation of mixtures; some primary distillation towers in small-scale chemical production process the raw materials for preliminary distillation separation to obtain crude products, and then further refine through other processes. These distillation towers have limited processing scale and low separation accuracy requirements. The performance of Raschig rings can meet the basic requirements of distillation mass transfer.

II. The Manifestation of Function in Distillation Towers

In the distillation tower, Raschig rings are filled in the tower body to form a packing layer. Its core function is to provide contact surfaces and flow channels for the gas and liquid phases, promoting mass transfer and heat transfer during the distillation process. When the ascending steam and descending liquid flow in the opposite direction in the packing layer, Raschig rings can disrupt the flow state of the fluids, increasing the contact opportunities between the gas and liquid phases. The liquid forms a liquid film on the Raschig ring surface, and when the steam contacts the liquid film, volatile components transfer from the liquid phase to the gas phase, and non-volatile components transfer from the gas phase to the liquid phase, thereby achieving the separation of the mixture. Although the gas-liquid contact efficiency of Raschig rings is not as good as that of new packing materials, in simple distillation processes, it can still complete the basic separation task by increasing the contact area and prolonging the contact time.

III. Adaptation of Different Material Raschig Rings

Ceramic Raschig Rings

In scenarios where the medium in the distillation tower is acidic or has a high temperature, ceramic Raschig rings show significant advantages. Their excellent acid resistance can withstand the acidic steam or liquid corrosion that may occur during the distillation process, and their good high-temperature resistance can adapt to the high-temperature environment in the distillation tower. They are particularly suitable for small-scale acidic material distillation towers.

Metal Raschig Rings

For distillation media without corrosivity or weak corrosivity, metal Raschig rings (such as carbon steel Raschig rings) can play a role. Their structural strength is high, capable of withstanding the pressure and weight of the packing layer in the distillation tower, suitable for some small-scale distillation towers with low requirements for material corrosion resistance, but it is necessary to note that the carbon steel material may develop corrosion problems over time.

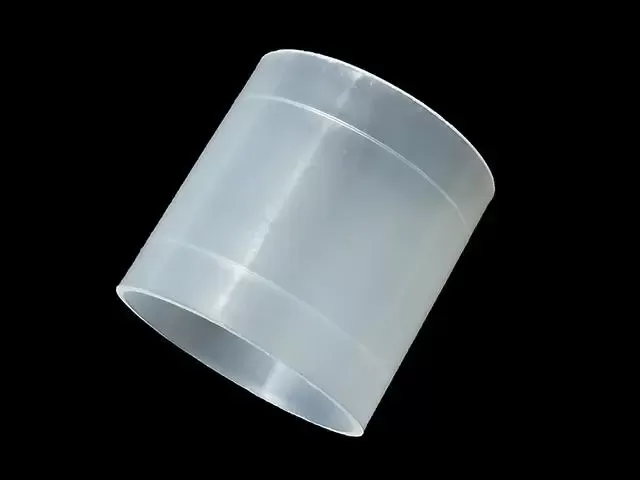

Plastic Raschig Rings

In small-scale distillation towers at normal temperature and low corrosivity, plastic Raschig rings (such as polypropylene Raschig rings) can be chosen. They are lightweight, easy to install, and cost-effective, meeting the basic requirements of simple distillation processes. However, they should not be used in distillation towers with high temperature or strong corrosive media to prevent deformation or corrosion damage.

IV. Precautions in Application

Installation Requirements

When installing Raschig rings in the distillation tower, it is necessary to ensure uniform filling of the packing, avoiding local over-density or under-density, to prevent uneven gas-liquid distribution that affects the distillation effect. At the same time, damaged or deformed Raschig rings should be removed to reduce problems such as channel flow and wall flow caused by packing defects, ensuring that the gas and liquid can fully contact in the packing layer.

Process Parameter Control

Due to the characteristics of Raschig rings with low flux and high resistance, in the operation of the distillation tower, it is necessary to reasonably control process parameters. For example, controlling the upward steam velocity to avoid excessive resistance caused by high gas velocity, which affects the stable operation of the distillation tower; ensuring the liquid spray density to allow the Raschig ring surface to be fully moistened, improving the gas-liquid contact efficiency. Generally, the liquid spray density should not be lower than 5m³/(m²·h).

Understanding of Limitations in Application

It is necessary to clearly understand the limitations of Raschig rings in distillation tower applications. They are not suitable for large distillation towers, high separation accuracy requirements in distillation processes, or distillation towers handling materials prone to polymerization or scaling. In these scenarios, new types of packing materials with higher mass transfer efficiency and greater throughput should be selected to ensure the distillation effect and production efficiency.
