The characteristics of Raschig ring packing

As a traditional ring-shaped packing in the field of chemical mass transfer, Raschig ring packing, with its unique structure and performance, holds a certain position in specific scenarios. Its characteristics mainly lie in multiple aspects such as structural form, performance manifestation, material selection, application adaptation, and cost control.

1. Structural form characteristics

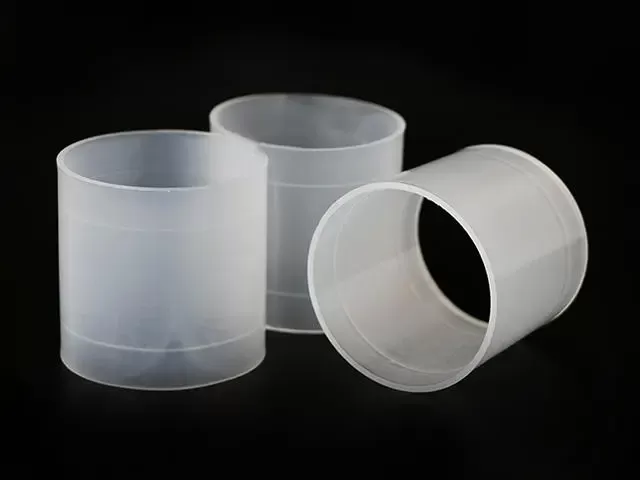

The structural design of Raschig ring packing is characterized by its simplicity. The core feature is the circular ring shape with equal outer diameter and height, and there are no any openings on the side. This regular ring-shaped structure enables it to form a relatively orderly packing layer space when stacked, and the manufacturing process is thus more convenient. Compared with later improved packing such as Bauer ring, Raschig ring does not have complex windowing or inwardly extending tongue-like designs, and the simplicity of its structure is both the source of its manufacturing advantage and to some extent limits its performance improvement.

2. Performance manifestation characteristics

Limited gas-liquid contact efficiency

During the gas-liquid contact process, Raschig ring packing has obvious limitations. Liquids tend to flow along the outer wall of the ring, resulting in a low utilization rate of the inner surface of the ring, and an uneven distribution of gas and liquid phases, insufficient contact. This characteristic makes its mass transfer efficiency relatively low, and it is difficult to meet the requirements of high separation accuracy in scenarios with high separation precision.

Fluid resistance and flux characteristics

The Raschig ring packing layer has a large resistance to gas flow, which directly leads to a relatively small flux. When gas passes through the packing layer, it needs to overcome a large flow resistance, so it is limited in applications with large processing capacity and is more suitable for smaller-scale processes. However, its resistance and flux characteristics are relatively stable, and in scenarios with a small processing capacity, it can maintain a relatively consistent operating state.

Correlation of geometric performance with size

The geometric performance of Raschig ring is closely related to size and shows a significant size dependence. Small-sized Raschig rings have a larger specific surface area, for example, 6mm Raschig rings have a specific surface area of about 789m²/m³, but the void ratio is relatively low; as the size increases, the specific surface area gradually decreases (100mm Raschig rings have a specific surface area of approximately 19m²/m³), while the void ratio increases (usually between 0.7-0.8). This correlation between size and performance enables it to adapt to different mass transfer requirements and processing scales through size selection.

3. Material selection characteristics

The material selection of Raschig ring packing is diverse and can be flexibly adapted to the working conditions. Ceramic Raschig rings have strong acid resistance and high compressive strength (not less than 80MPa), but they are brittle, suitable for acidic medium environments; among metals, carbon steel has a lower cost but limited corrosion resistance, and stainless steel (such as 304 material with chromium ≥18% and nickel ≥8%) has excellent corrosion resistance and is suitable for various acid-base media; plastic materials (such as polypropylene, polyethylene) are lightweight, low in price, and have varying corrosion resistance, with a temperature range that is relatively narrow (generally -40℃-100℃), suitable for light-load and low-corrosion scenarios.

4. Application scenario characteristics

The application of Raschig ring packing has significant scenario-specificity and is more suitable for simple chemical processes. It is suitable for scenarios with low requirements for mass transfer efficiency, small processing capacity, and non-corrosive materials, such as small gas scrubbers, dryers, and laboratory small-scale experimental devices. In these scenarios, its simple structure and low cost can be fully utilized, and there is no need to bear the high cost investment of new efficient packing.

5. Cost and maintenance characteristics

Lower manufacturing cost

Thanks to the simple structural design and mature manufacturing process, the manufacturing cost of Raschig ring packing is relatively low. Whether it is ceramic, metal, or plastic material, compared with the improved packing with complex structures, the raw material consumption and processing difficulty in the production process are smaller, which can effectively reduce equipment investment costs and has obvious advantages in cost-sensitive scenarios. Maintenance requirements are simple

In terms of maintenance, the requirements for Raschig ring packing are relatively simple. During installation, it is only necessary to ensure uniform stacking and avoid the inclusion of damaged and deformed products; during use, due to its simple structure, complex blockages or jams are less likely to occur, and the daily inspection and replacement operations are relatively convenient, which can reduce maintenance time and costs. However, for ceramic material Raschig rings, care should be taken to avoid severe impacts to prevent damage.
